Vacuum filtration
Recover solids or clarify valuable liquid efficiently.
Glass Agitated Nutsche Filters
Glass nutsche and agitated nutsche filters for vacuum filtration, washing and cake handling in corrosive, light-sensitive and high-value processes.
UD Technologies · Vadodara, India
Solid–liquid separation
Filter, wash and recover solids with the process in view.
Glass nutsche filters separate solids from liquid after reaction, crystallisation or extraction. Depending on the process, the valuable stream may be the filter cake or the clarified liquid, so cake volume, filtrate capacity, cloth support and discharge access are engineered around the duty.
Borosilicate glass and PTFE contact parts resist many corrosive slurries while allowing operators to observe filtration and cake formation. User-focused cover, cloth and side-access arrangements simplify harvesting, cleaning and maintenance.
Glass and PTFE contact
No exposed metal in contact with the product.
Visible cake formation
Observe filtration, washing and drying progress.
GMP-oriented access
Designed for dismantling, cleaning and cloth replacement.
Salient features
Designed around cake handling and cleanability.
Filter format, agitation, access, transfer and thermal options can be matched to the slurry and product-recovery sequence.
Easy cake removal
Removable covers, side handholes and trolley-supported plates improve access.
Top cloth replacement
Change the filter cloth without lowering the bottom assembly.
Agitated processing
PTFE-sleeved scrapers support mixing, smoothing and cake discharge.
Hot filtration option
A vessel jacket can maintain temperature through filtration.
Modular transfer
Transfer pumps and skid-mounted motors can be included to the URS.
Corrosion resistance
Glass suits many acidic slurries except incompatible glass-attacking media.
Filter configurations
Choose static filtration or integrated cake agitation.
Solids loading, wash sequence, discharge method and cleaning requirements determine the filter arrangement.

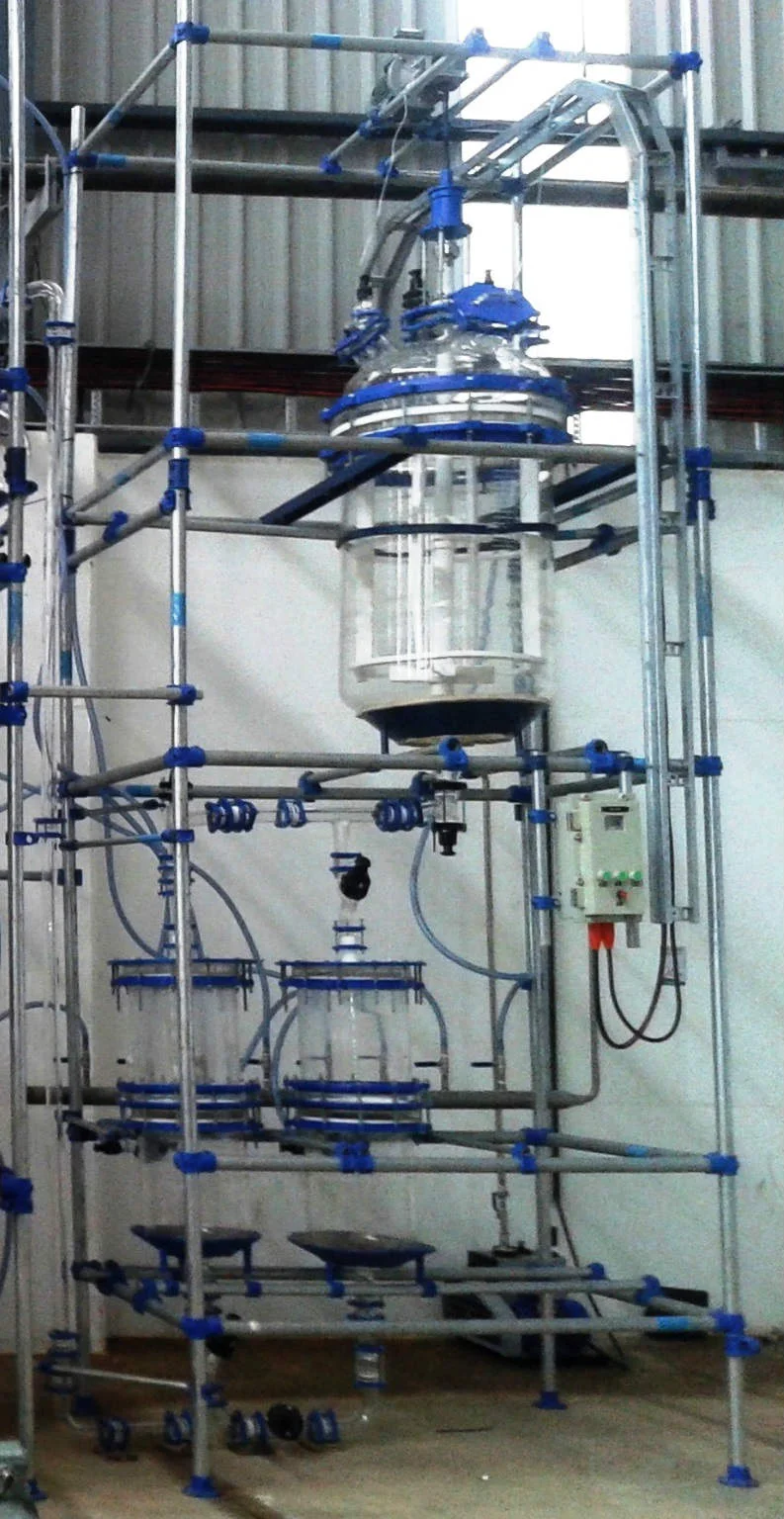

Glass nutsche filter
Straightforward vacuum filtration and cake recovery
A transparent filter vessel with accessible cloth support and discharge options for pilot plants, R&D and kilo labs.
Configuration
- Primary duties
- Solid recovery or liquid clarification
- Contact materials
- Borosilicate glass 3.3 and PTFE
- Cake access
- Top opening, side handhole or removable bottom plate
- Connections
- Feed, wash solvent, vent and nitrogen connections
Glass agitated nutsche filter
Agitation and scraping for integrated cake processing
A top-mounted PTFE-sleeved scraper can operate manually or by motor, with large side access for harvested cake.
Configuration
- Agitation
- Manual or electrically driven scraper/stirrer
- Discharge
- Large side nozzle available for scraped cake
- Large systems
- Motorised lifting and lowering arrangement available
- Thermal option
- Jacket for hot filtration
- Mobility
- Skid or wheeled support options
Related system
Combine filtration with upstream liquid extraction.
Separate leached solids after a glass extraction stage or integrate filtration into a wider pilot plant.
