Up to 300 litres
Batch, filter and spherical configurations are available across laboratory and pilot scales.
Glass Reactors
Borosilicate glass reactors for batch reaction, filtration, cryogenic processing and reaction-distillation duties, configured from laboratory to pilot scale.
UD Technologies · Vadodara, India
Reactor engineering
Make the reaction visible, controllable and easier to scale.
Borosilicate glass combines broad corrosion resistance with direct visibility of mixing, phase behaviour and reaction progress. This makes it especially useful for kilo laboratories, pilot plants and smaller production batches where process understanding is as important as containment.
UD Technologies configures each reactor around the chemistry, operating temperature, heat-transfer duty, agitation requirement and downstream operation. Cylindrical reactors support geometric similarity during scale-up, while spherical and specialised vessel forms suit particular batch, filtration and distillation duties.
Borosilicate glass
Transparent, corrosion-resistant product-contact construction for demanding chemistry.
Batch or continuous
Select the reactor arrangement around residence time, mixing and process sequence.
Custom engineered
Jackets, agitation, controls and supporting systems are matched to the user requirement.
Configuration options
A reactor platform built around the process.
The vessel, heat-transfer arrangement and handling system can be selected independently to suit the chemistry and operating procedure.
Transparent process observation
Operators can observe mixing, phase changes, crystallisation and filtration directly through the glass vessel.
Jacket and thermal options
Choose glass, stainless-steel or mild-steel jackets together with heating or cooling baths and mantles.
Process-specific agitation
Glass or PTFE agitation systems, baffles and single- or multi-stage arrangements can be configured for the duty.
Reaction and filtration
Filter-reactor configurations combine synthesis, washing, filtration and drying in one vessel.
Cryogenic capability
Triple-walled vessels use an evacuated outer jacket to insulate very low-temperature reactions and preserve visibility.
Instrumentation and automation
Manual, motorised and automated arrangements can be supplied to match operating and validation requirements.
Reactor configurations
Compare the principal glass reactor arrangements.
Final capacities, connections, materials and controls are confirmed against the process and user requirement specification.
Batch and jacketed reactors

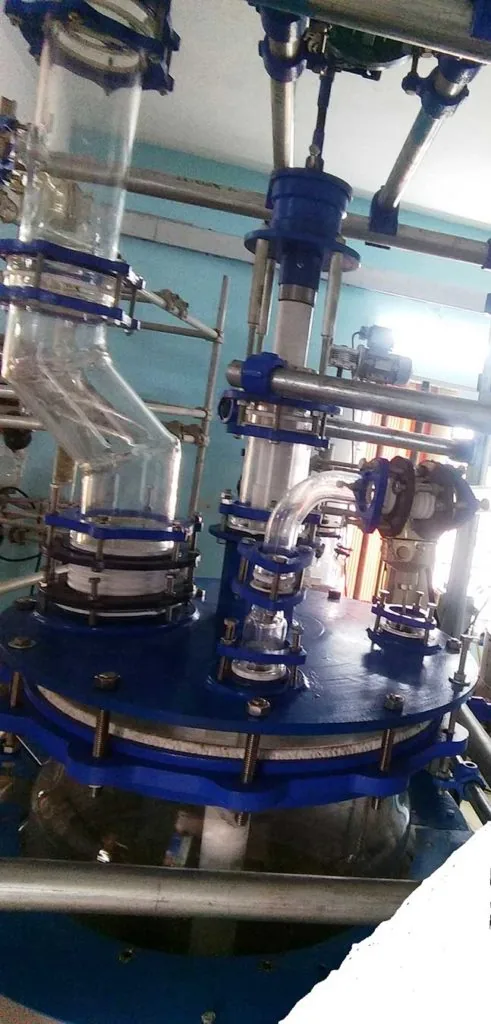

Glass batch and jacketed reactors
A flexible platform for API, fine-chemical and pilot-plant reactions. Cylindrical construction supports scale-up studies, while jackets and external heating or cooling equipment provide temperature control.
Configuration
- Typical operation
- Batch reaction and process development
- Capacity
- Available up to 300 litres
- Vessel forms
- Cylindrical or spherical
- Jacket materials
- Glass, stainless steel or mild steel
- Agitation
- Glass or PTFE stirrer systems; baffles optional
- Thermal support
- Heating and cooling baths or mantles
Filter reactors and SPPS reactors
Glass filter reactors for reaction and solid handling
Filter reactors support liquid-solid reactions and consolidate synthesis, washing, filtration and cake handling. Solid-phase peptide synthesis configurations serve laboratory and pilot-scale work.
Configuration
- Typical operation
- Reaction, washing, filtration and drying
- SPPS capacity
- 20–300 litres; larger sizes on request
- Thermal arrangement
- Jacketed or unjacketed
- Filter-plate handling
- Manual, jack-assisted or motorised support systems
- Construction
- Standard or customised to the user requirement
- Controls
- Instrumentation and automation available

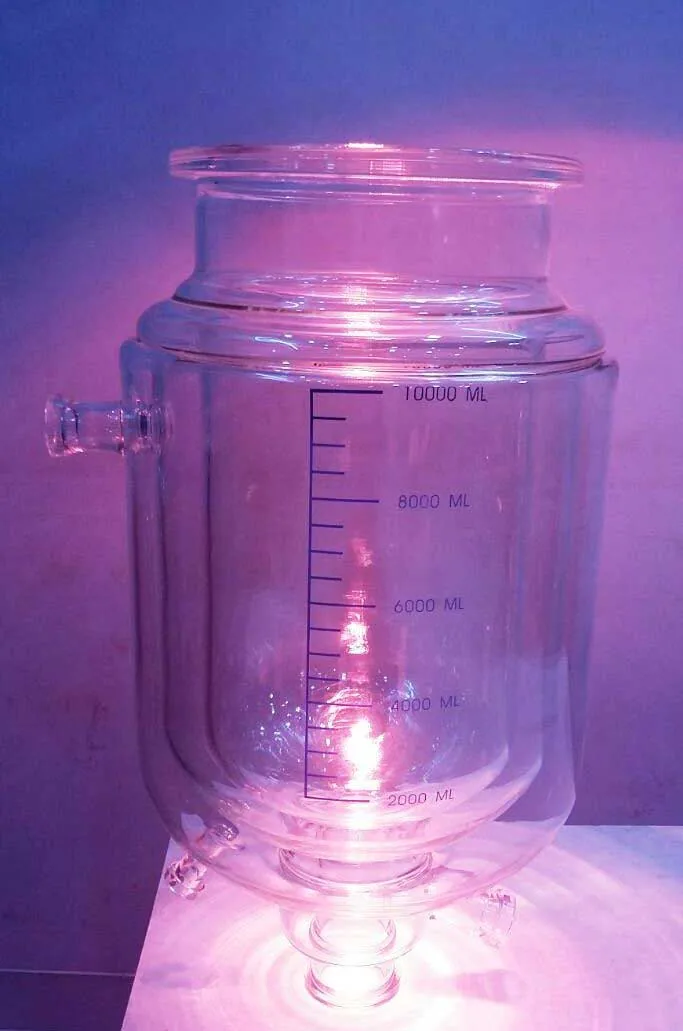

Triple-walled cryogenic reactors
Insulated glass reactors for cryogenic reactions
A process jacket circulates low-temperature fluid while the evacuated outer jacket acts as an insulation barrier. This reduces external icing that can obscure observation in conventional jacketed vessels.
Operating envelope
- Application
- Small-batch cryogenic reaction
- Typical coolant range
- Approximately −70°C to −80°C
- Capacity
- Available up to 50 litres
- Insulation
- Vacuum-evacuated external glass jacket
- Scale-up
- Multiple configuration options available

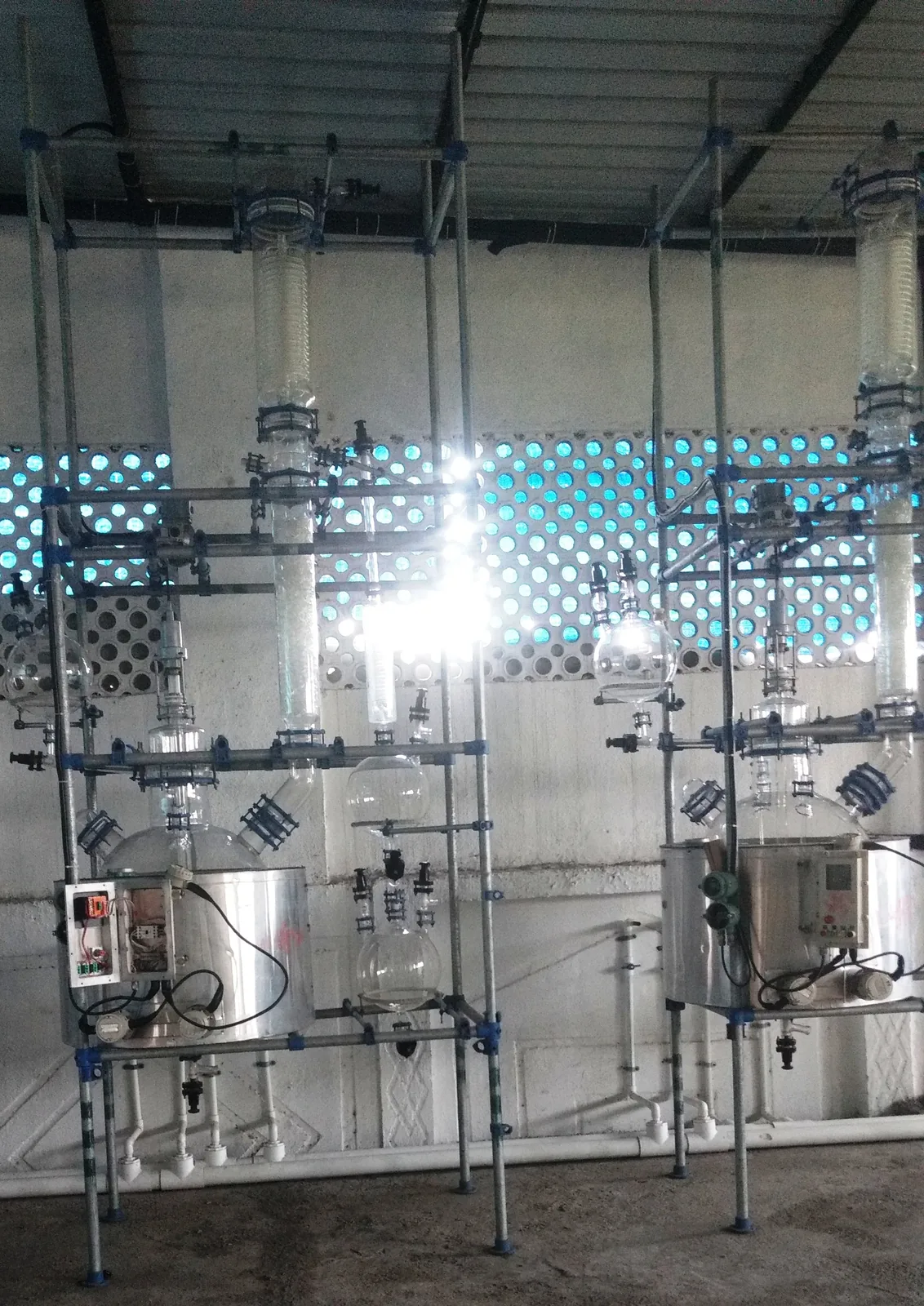

Spherical reaction-distillation units
Spherical reactors for small batches and purification
Spherical glass reactors can be assembled as fractional reaction-cum-distillation units for small-batch production, purification and solvent distillation.
Configuration
- Applications
- Reaction, purification and solvent distillation
- Capacity
- Available up to 300 litres
- Assembly
- Complete reaction-distillation units available
- Customisation
- Configured around process operating conditions
Scale-up systems
Integrate the reactor into a complete glass pilot plant.
Combine reaction with raw-material preparation, distillation, extraction, absorption, filtration and other downstream operations.
