Stable pressure
Automatic regulation around the selected vacuum setpoint.
Vacuum Controllers
Digital vacuum controllers for rotary evaporators, glass reactors and distillation systems, supporting stable evaporation and improved solvent recovery.
UD Technologies · Vadodara, India
Evaporation control
Hold the vacuum where efficient evaporation and condensation meet.
Applying the deepest available vacuum can lower a solvent’s boiling point too close to the coolant temperature, allowing vapour to pass through the condenser and into the vacuum source. A controller instead maintains the process pressure selected for effective evaporation and condensation, helping improve solvent recovery and reproducibility.

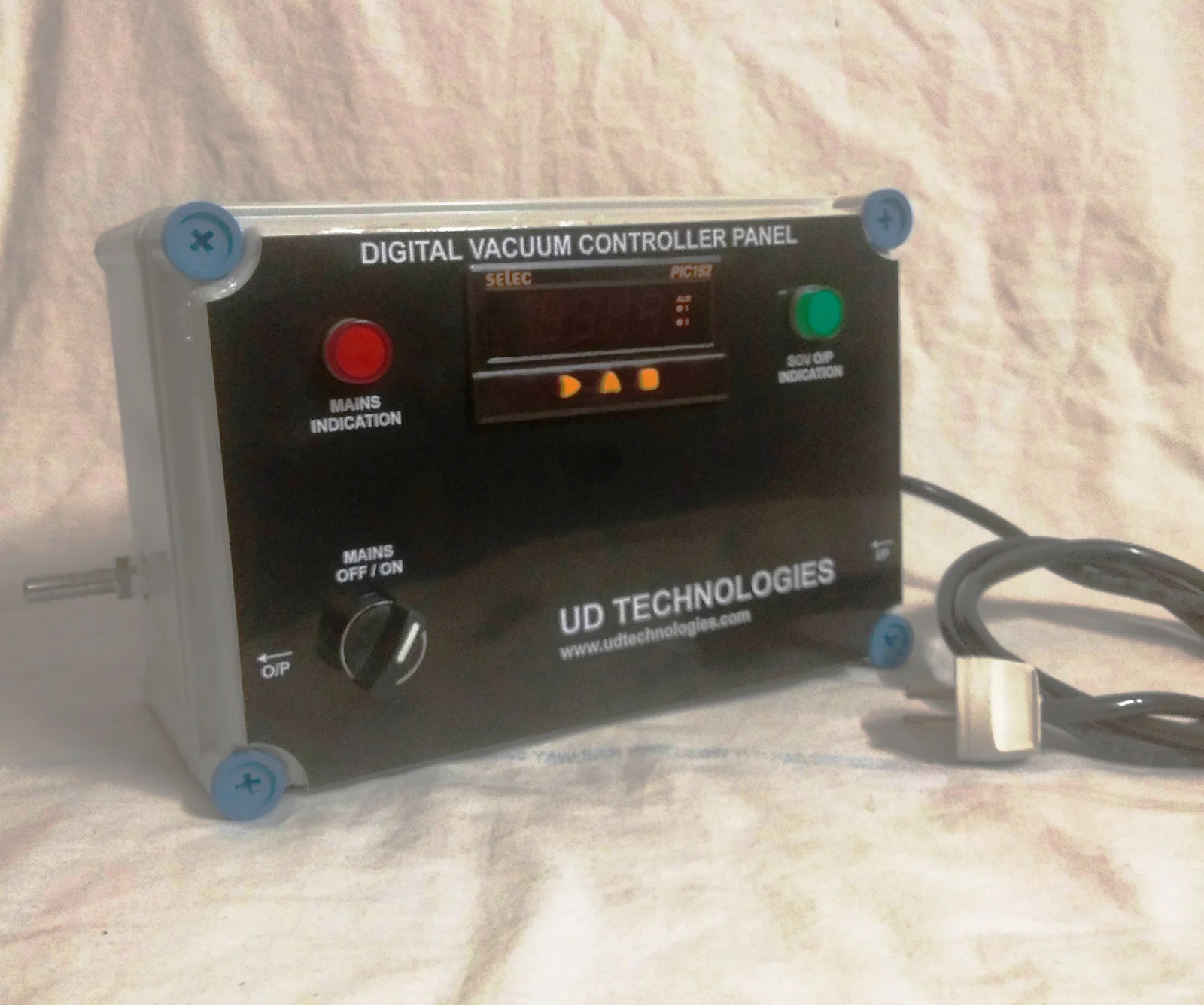

The system combines a vacuum transmitter, controller, electromagnetic isolation valve and an integrated control panel. The valve closes at setpoint and reopens as vapour pressure changes. A manual air-purge or fine-control valve supports stable regulation across different system volumes and vacuum-pump capacities.
Lower solvent loss
Keep boiling temperature above the coolant range.
5–50 L lab duty
Portable control for common development-scale systems.
Scalable design
Production and flameproof configurations are available.
Salient features
Practical control for changing solvents and process conditions.
The final equipment arrangement, materials and controls are selected around the process duty and site conditions.
Automatic regulation
A transmitter and electromagnetic valve maintain the required pressure.
Configurable units
Set and monitor vacuum in mbar, Torr, kPa or another preferred unit.
Ready to connect
Install between the process receiver and vacuum source, then set the target.
Manual fine control
Air purge and vacuum-release functions support accurate adjustment.
Pump control option
The vacuum pump can be stopped during the closed-valve control cycle.
Process customisation
Materials, automation and flameproof execution can match production duties.
System configuration
Choose the controller format for the process scale.
Setpoint range, connection size, wetted materials and area classification are confirmed against the vessel, solvent and vacuum source.
Laboratory vacuum controller
Portable control for research and development
Typical application
- System volume
- Approximately 5–50 litres
- Equipment
- Rotary evaporators, glass reactors and lab distillation
- Installation
- Inline between vacuum source and process
- Functions
- Setpoint control, aeration and vacuum release
- Format
- Compact, lightweight and ready to use
Production vacuum controller
Controlled vacuum for reactors and continuous systems
Configuration inputs
- Process
- Batch or continuous evaporation and distillation
- Connection
- Sized to the receiver and vacuum pipeline
- Area
- Standard or flameproof execution
- Materials
- Selected for solvent and process compatibility
- Automation
- Custom sequences and plant-control integration
Related system
Pair vacuum control with industrial solvent recovery.
Industrial rotary evaporators combine controlled heating, film formation and condensation for scale-up duties.
